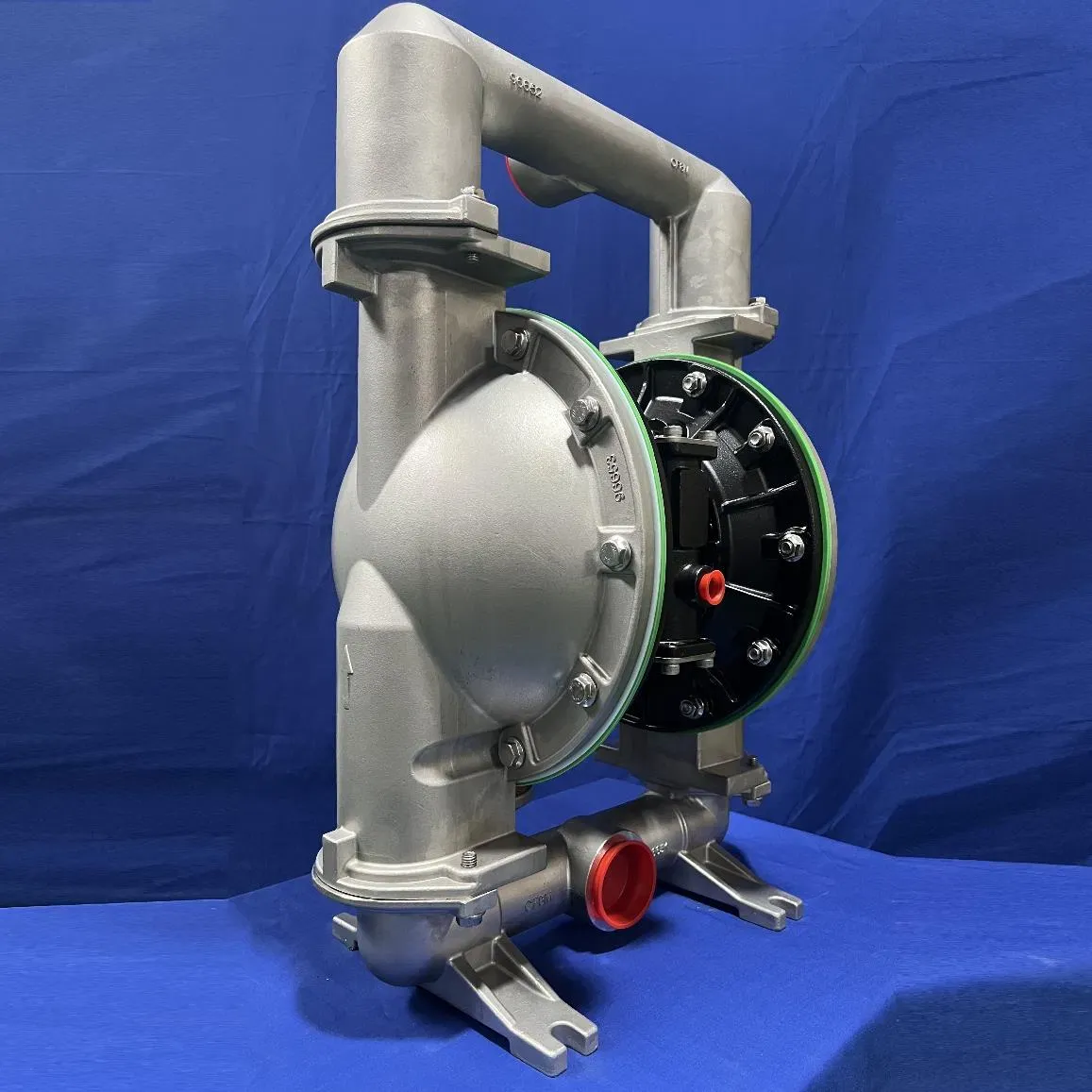

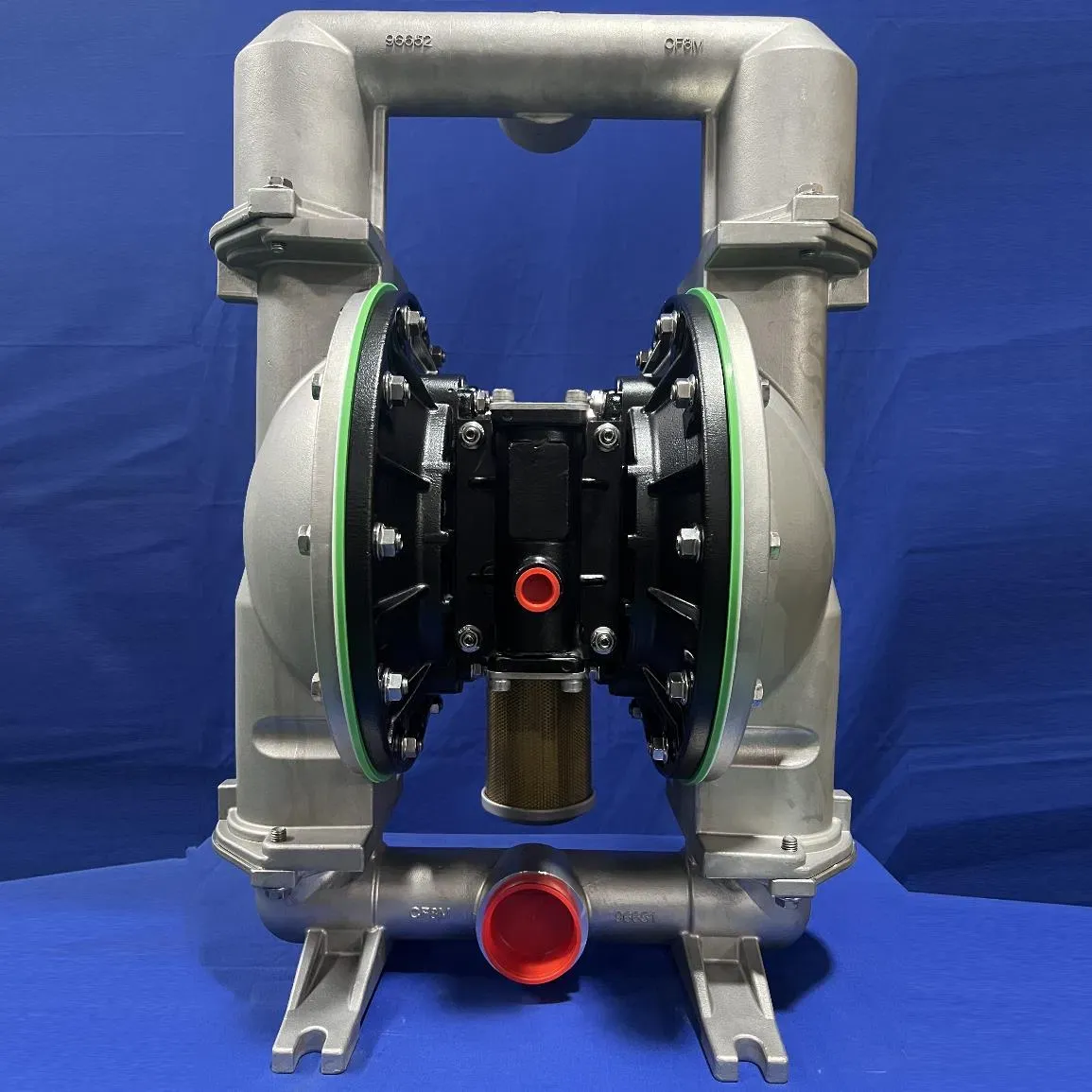

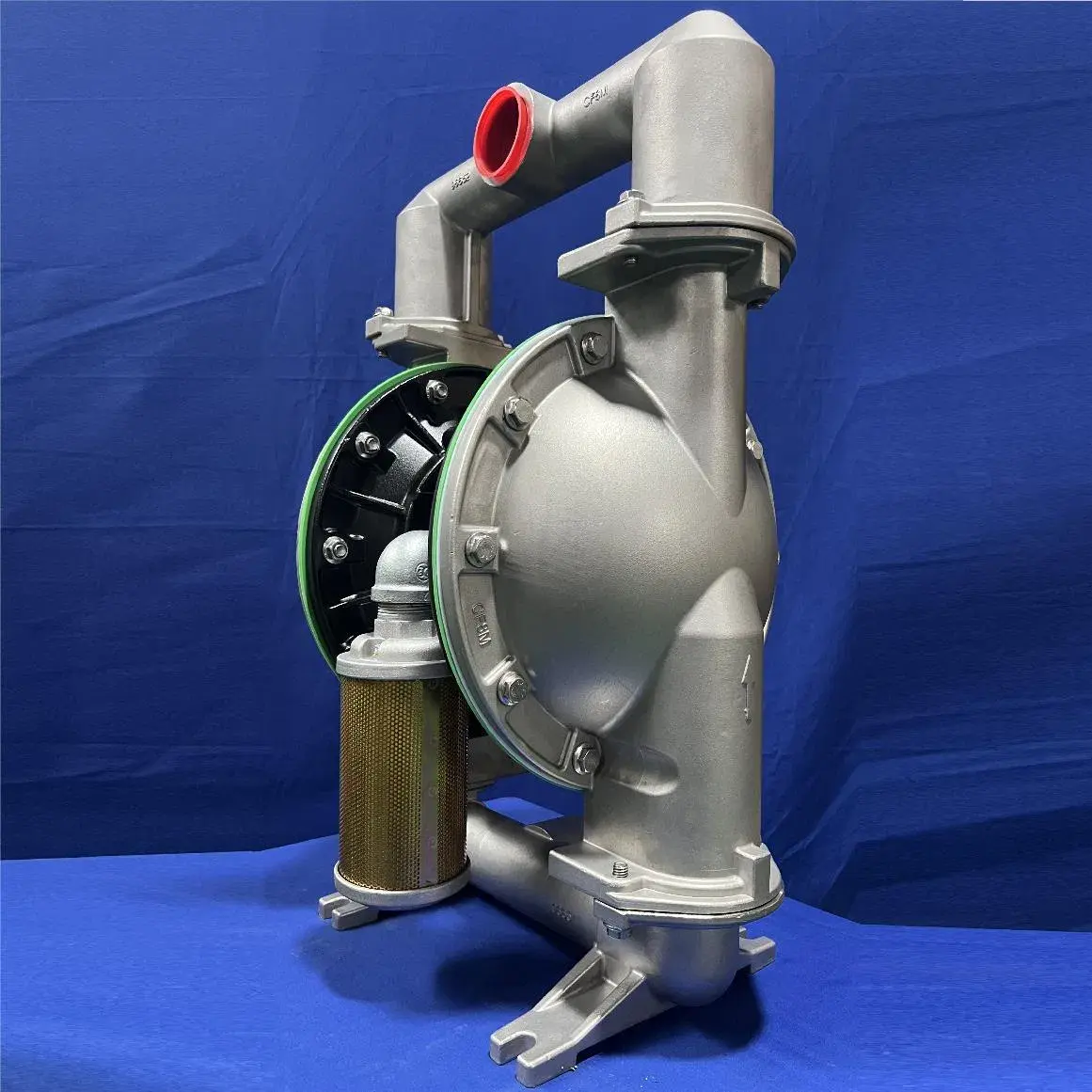

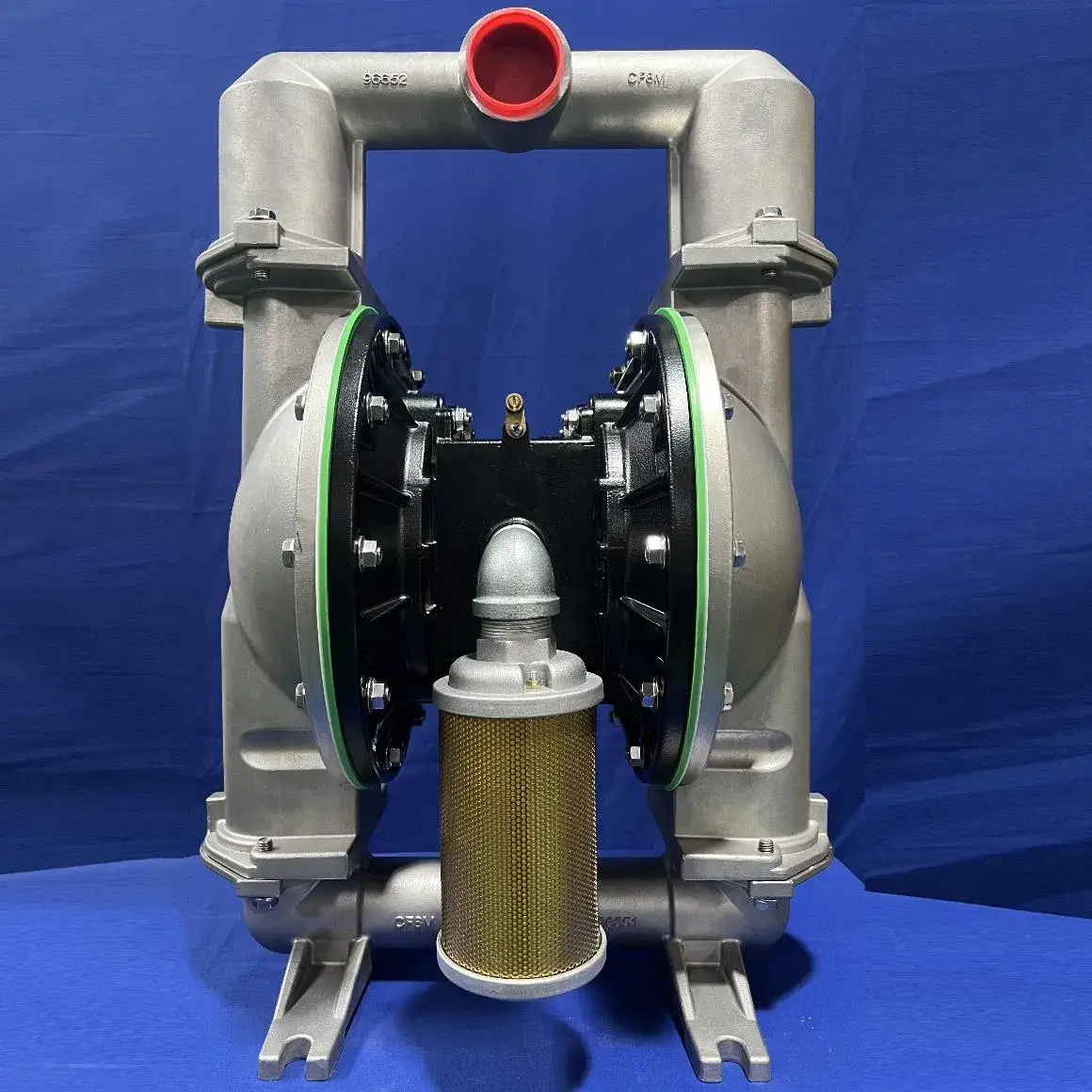

High-performance 2-inch stainless steel air-operated double diaphragm pump for reliable fluid transfer in demanding industrial applications.
Features a reliable, stall-free air distribution valve for consistent performance and reduced pulsation.
Constructed from durable stainless steel, offering excellent corrosion and wear resistance.
Delivers a high maximum flow rate of 175.4 GPM (664 LPM) for efficient fluid transfer.
Engineered for lower air consumption and incorporates anti-icing design features.
Features a self-lubricating, maintenance-friendly air system with robust dual ceramic seals.
Offers compatibility with standard mounting footprints for easy integration or replacement.
Designed for handling a wide range of viscous, corrosive, or abrasive industrial fluids.
Model Series: DP21
Body Material: Stainless Steel
Maximum Flow Rate: 175.4 GPM (664 LPM)
Maximum Operating Pressure: 120 psi (8.3 bar)
Fluid Inlet/Outlet Connections: 2" BSP or NPT
Air Inlet Connection: 3/4" BSP or NPT
Diaphragm Material Options: PTFE, Santoprene, Nitrile, etc.
